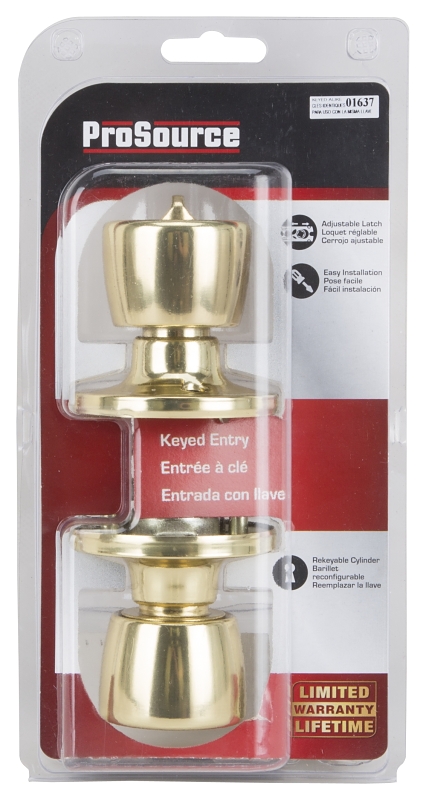

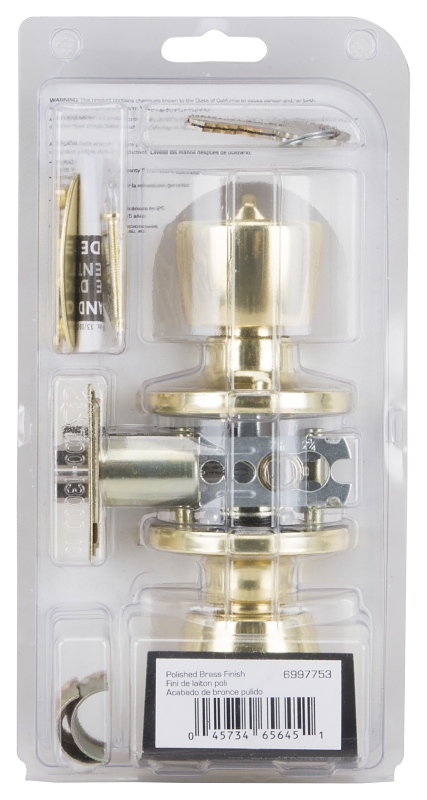

ProSource TS700V-PS Entry Knob, Brass, KW1, KA3 Keyway, 3 Grade

ProSource

ProSource TS700V-PS Entry Knob, Brass, KW1, KA3 Keyway, 3 Grade

$13.49$13.49
ProSource TS700V-PS Entry Knob, Brass, KW1, KA3 Keyway, 3 Grade
  • Backset Size: 2-3/8 2-3/4 in
  • Bolt Throw Size: 1/2 in
  • Cross Bore Diameter: 2-1/8 in
  • Cylinder Type: 5-Pin
  • Design: Tulip
  • Model #: TS700V-PS
  • UPC #: 045734656451
  • SKU: 6997753

Your shopping list will be used for pickup in-store

Product Details

For keyed exterior doors. Both knobs lock or unlock by key outside or turn button inside. All metal components. Solid steel latch assembly. Rust-resistant solid brass keyway for more security. Seamless 1-piece knob for extra strength. Square spindle for right or left handed installations. Easy installation. Cylinder drilled for construction keying. Door prep 2-1/8 in Crossbore, 1 in Edge Bore, 1 x 2-1/4 in Latch Face. Fits 1-3/8 to 1-3/4 in doors.

Key Features

  • The finish is of polished brass
  • Suitable for residential use
  • The door knob grade is 3

Item Specifications

Backset Size2-3/8 2-3/4 in
Bolt Throw Size1/2 in
Cross Bore Diameter2-1/8 in
Cylinder Type5-Pin
DesignTulip
Dimensions478 x 265 x 283 mm
Door Thickness1-3/8 to 1-3/4 in
Edge Bore Diameter1 in
Faceplate Size1 x 2-1/4 in
Includes(2) Keys
Key TypeKeyed Alike
Keyway TypeKW1 KA3
Latch Type6-Way
MaterialBrass
Number of Cylinders1
Security Grade3
Strike Size44.8 x 57 mm
Strike TypeFull Lip Round Corner
MORE DETAILS:
  • Application: For keyed exterior doors
